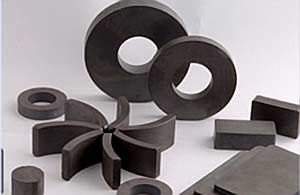

Ceramic Permanent MagnetsCeramic (Ferrite) magnets are sintered permanent magnets composed of Barium or Strontium Ferrite. This class of magnets, aside from good resistance to demagnetization, has the popular advantage of low cost.

Ferrite magnets are very hard and brittle, and require specialized machining techniques. Moreover, they should be machined in an unmagnetized state. We are equipped to machine these materials to specifications.

Anisotropic grades are oriented in the manufacturing direction, and must be magnetized in the direction of orientation. Isotropic grades are not oriented and can be magnetized in any direction, although some degree of greater magnetic strength will be found in the pressing dimension, usually the shortest dimension.

Due to their low cost, Ferrite magnets enjoy a very wide range of applications, from motors and loudspeakers to toys and crafts, and are the most widely used permanent magnets today.

Common Applications for Ceramic Magnets

  • Automotive Sensors
  • Brakes
  • Clamps
  • Craft and Hobby Projects
  • Education
  • Fridge Magnets and Novelty Items
  • Lifting and Holding Applications
  • Magnetic Filters
  • Magnetos
  • Measuring Equipment
  • Medical Instruments
  • Microwave Ovens
  • Motors
  • MRI
  • Pump Drives
  • Separators
  • Speakers
  • Sweeper Magnets
  • Switches and Relays
  • Toys

Manufacturing Methods

Pressing and Sintering

Pressing and sintering involves pressing very fine ferrite powder in a die, and then sintering this pressed magnet. All fully dense Ferrite magnets are produced this way. Ferrite magnets can be wet pressed or dry pressed. Wet pressing yields better magnetic properties, but poorer physical tolerances. Generally, the powder is dry for grade 1 or 5 materials, and wet for grade 8 and higher materials. Sintering involves subjecting the material to high temperatures to fuse the pressed powder together, thus creating a solid material. Magnets produced through this process usually need to have some finish machining, otherwise surface finishes and tolerances are not acceptable. Some manufacturers extrude instead of pressing the wet powder slurry and then continue sintering the material. This is sometimes done for arc segment shapes, where the arc cross-section is extruded in long lengths, sintered, and then cut to length.

Injection Molded

Ferrite powder is mixed into a compound and then injection molded in the same way as plastic. Tooling for this manufacturing process is usually very costly. However, parts produced through this process can have very intricate shapes and tight tolerances. Injection molded ferrite properties are either lower or about the same as grade 1 Ferrite.

Assemblies

Assemblies using metal or other components and magnets can be fabricated by adhering magnets with adhesives to suit a range of environments, by mechanically fastening magnets, or by a combination of these methods. Due to the relatively brittle nature of these magnet materials, press fits are not recommended.

Surface Treatments

The corrosion resistance of Ferrite is considered excellent, and no surface treatments are required. However, Ferrite magnets may have a thin film of fine magnet powder on the surface and for clean, non-contaminated applications, some form of coating may be required.

Machining

Ferrite is brittle, and prone to chipping and cracking. Special machining techniques must be used to machine this material. We are fully equipped to machine these materials to your blueprint specifications.

Magnetizing and Handling

Ferrite magnets require magnetizing fields of about 10 kOe. They can be magnetized with multiple poles on one or both pole surfaces. No special handling precautions are required, except that large blocks of Ferrite magnets are powerful, and care should be taken to ensure that they do not snap towards each other.

Temperature Effects

Up to about 449°C (840°F), changes in magnetization are largely reversible, while changes between 449°C (840°F) and 982°C (1800°F) are re-magnetizable. For all Ferrite magnets, the degradation of magnetic properties is essentially linear with temperature. At 176°C (350°F), about 75% of room temperature magnetization is retained, and at 288°C (550°F), about 50% is retained.

Properties of Ceramic Magnets

GradeBr
KGs (mT)
Hcb
kOe (KA/m)
Hcj
kOe (KA/m)
(BH)max
kJ/m3 (MGOe)
Density
g/cm3
Max Operating
Temp
Tw
Remark
C12.3 (320)1.86 (150)3.5 (258)8.36 (1.05)4.8250 ℃ (482 °F)Isotropic
C53.8 (380)2.4 (190)2.5 (200)27.1 (3.4)4.9250 ℃ (482 °F)Isotropic
C73.4 (340)2.23 (258)4.0 (318)21.9 (2.75)4.9250 ℃ (482 °F)Isotropic
C8 (C8A)3.85 (385)2,95 (235)3.0 (240)27.8 (3.5)4.9250 ℃ (482 °F)Anisotropic
C8B4.2 (420)2.9 (232)2.96 (236)32.8 (4.1)4.9250 ℃ (482 °F)Anisotropic
C93.8 (380)3.5 (280)4.0 (320)26.4 (3.3)4.9250 ℃ (482 °F)Anisotropic
C104.0 (400)3.6 (288)3.5 (280)30.4 (3.8)4.9250 ℃ (482 °F)Anisotropic
C114.3 (430)2.5 (200)2.55 (204)34.4 (4.3)4.9250 ℃ (482 °F)Anisotropic

Physical Properties of Ceramic Magnets

Curie Temperature 450°C (482°F)
Coefficient of Thermal Expansion +7.0 - +15.0 x 10-6 °C-1
Electrical Resistivity >1010 µO·cm
Density 4.8 - 4.9 g/cm-3
Vicker's Hardness 480 - 580 HV
Young's Modulus 170 kN·mm-2
Bending Strength 0.05 - 0.09 kN·mm-2
Compressive Strength 1.3 kN·mm-2
Tensile Strength 0.02 - 0.05 kN·mm-2
